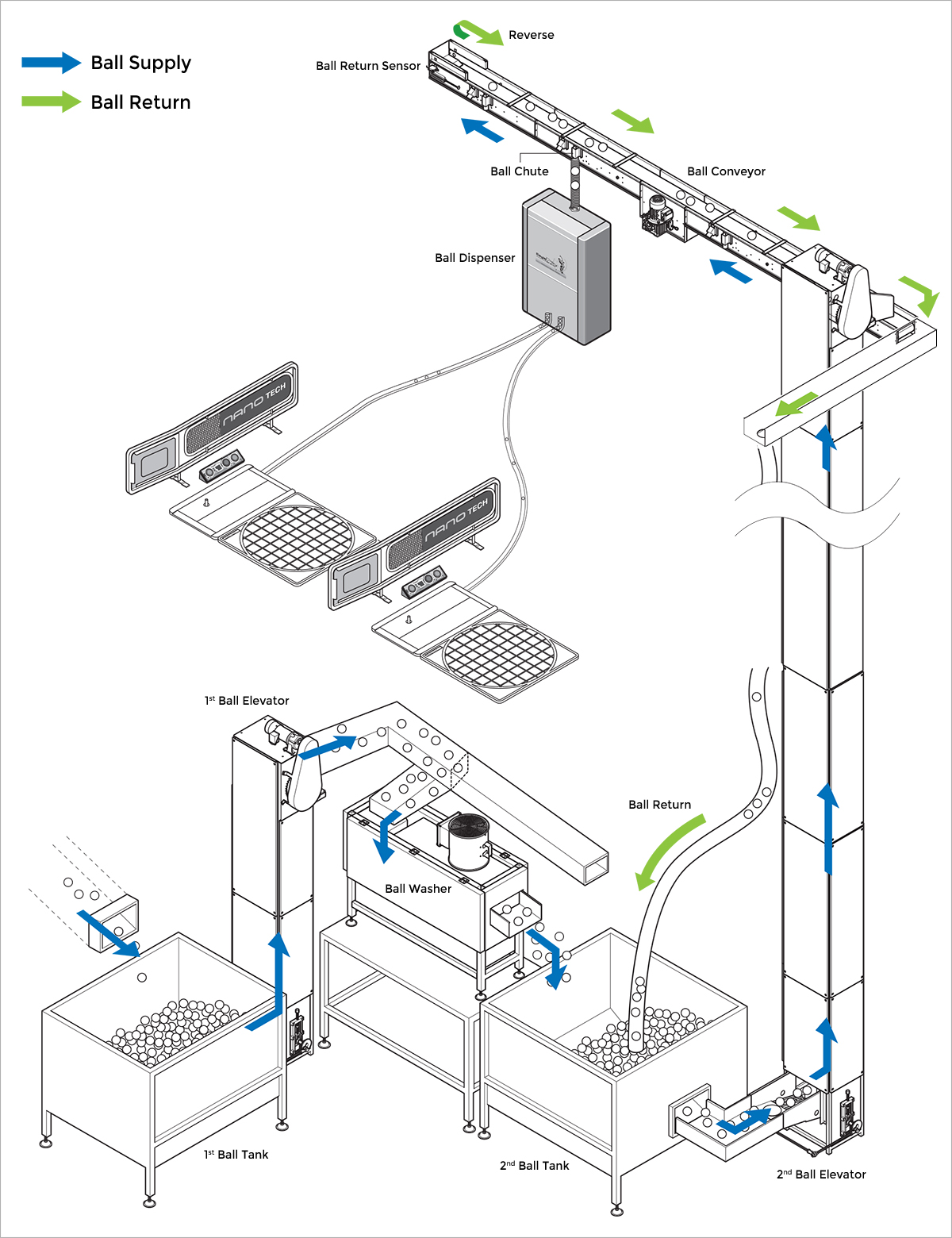

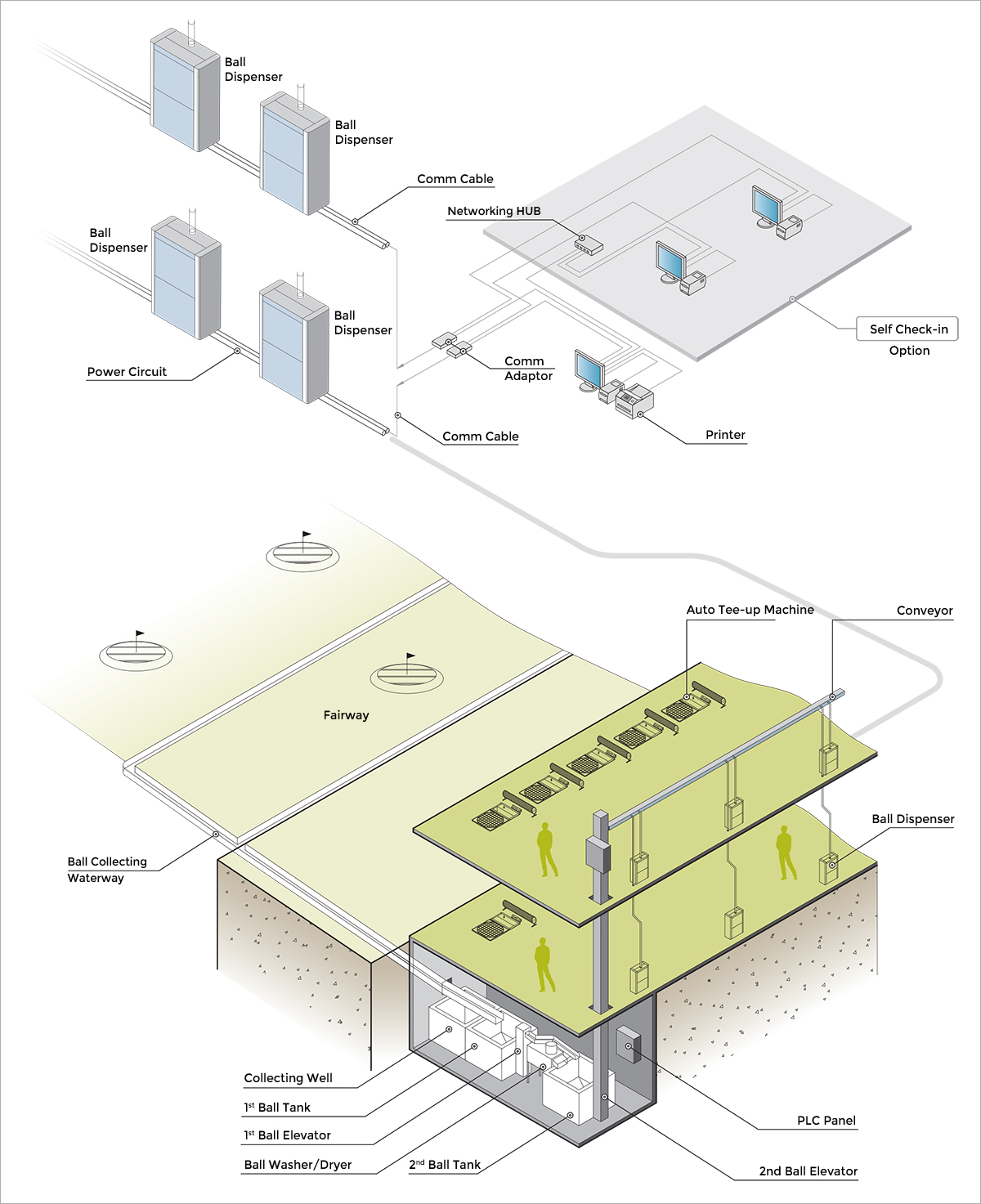

Recently, the automated golf course system has evolved into a system that automatically manages all areas of golf driving range. These systems not only automatically supply golf balls to each bay, also automatically manage collecting golf balls, cleaning and drying golf balls, transportation to bays of each story using vertical elevators and horizontal conveyors. In particular, in places like Korea, where fixed costs such as labor costs are high in operating golf courses, these system have become essential facilities for rationalization of management.
The full automatic management system of golf driving range refers to a system built to automate the entire operation of the golf driving range to a wider extent, different from the automatic tee-up machine limited to each bay, enabling overall operation with a minimum number of people. Building these systems requires well-experienced and technical skills in each field, including kinematics, electrical and electronic, and software. Nanotech Services Ltd. is committed to developing more advanced mechanical systems and integrated operating systems with a team optimized for deployment of fully automatic ball supply systems.

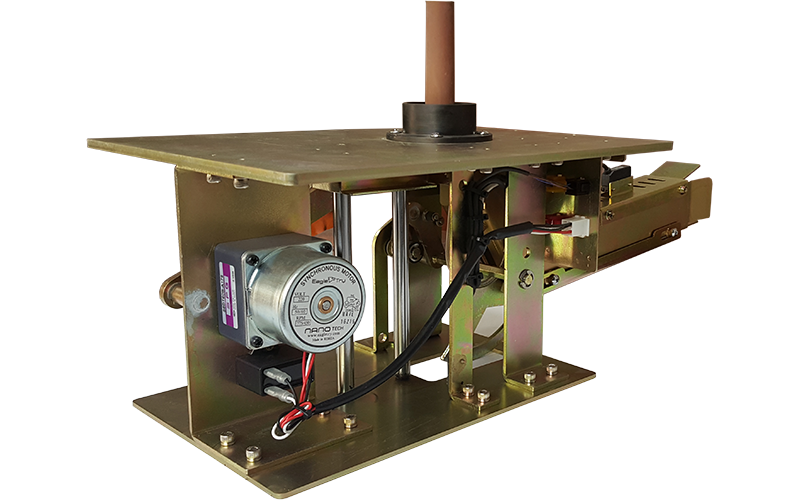

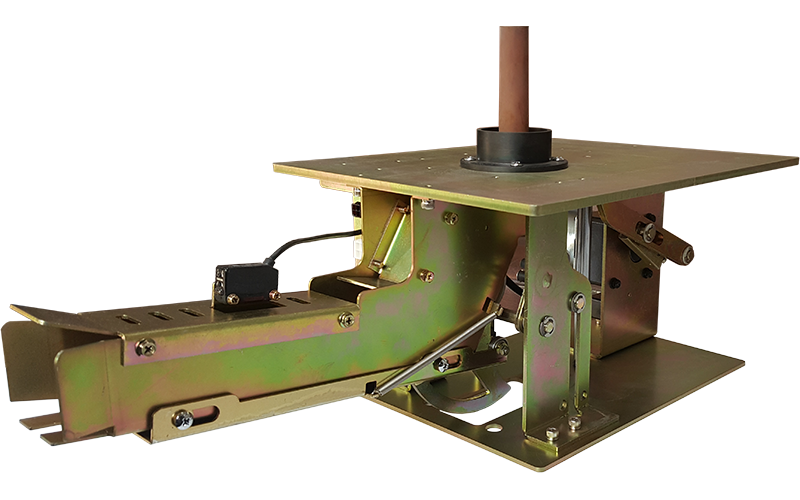

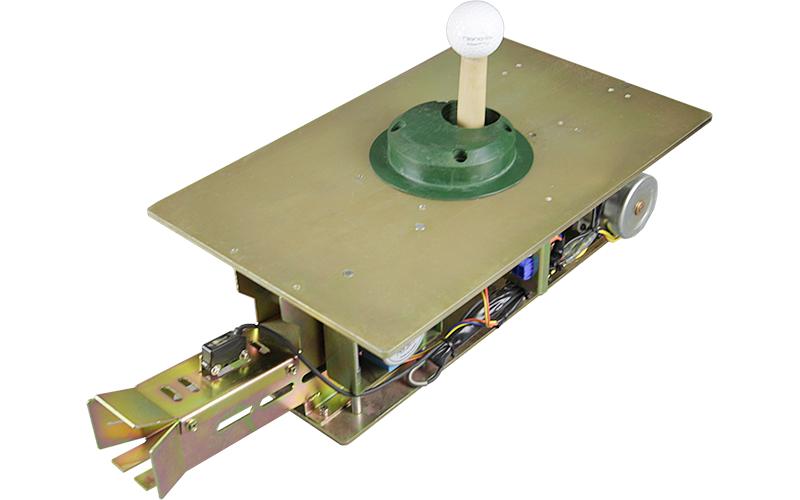

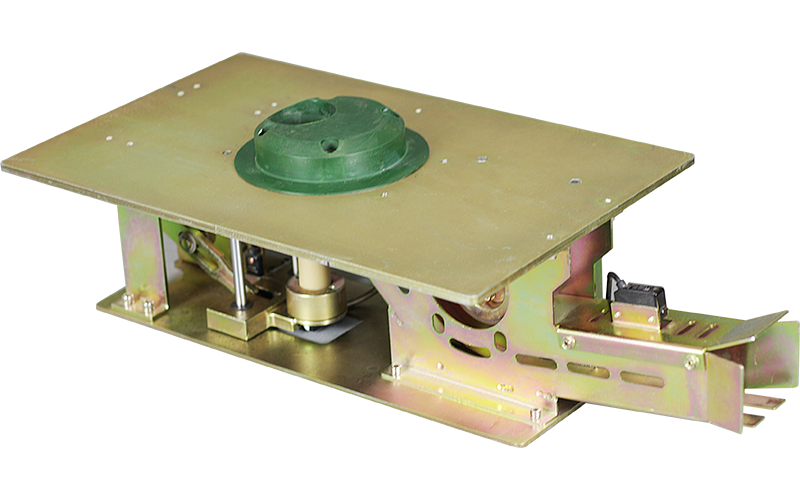

- It's an auto tee-up machine that enables stepless adjustment of the tee height within 0~70mm for golfer to deal with various club sizes.
- Applied the highest quality materials for all components including sensors (Waterproof and dust-proof: IP67 class), motor, belt, conveyor bearing, shaft.
- Surface treatment : electroplated with yellow zinc that is resistant to corrosion.
- No greasing required with the use of oilless bearing.
- Rubber tee : prevents bending and breakaway through iron plate ring inserted structure. And abrasion takes place evenly throughout the whole circumference thanks to rubber tee rotation.
- By separating the working mechanism of the ball supply and tee-up parts, it provides the world-best stability and durability.
- It's an auto tee-up machine that enables stepless adjustment of the tee height within 0~60mm for golfer to deal with various club sizes.
- It's a product that could drastically reduce the cost and period required for system construction.

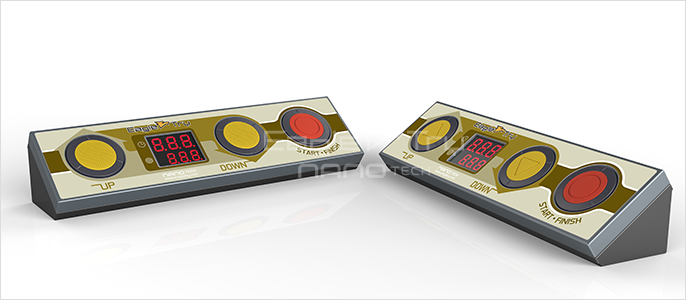

- The tee height can be adjusted stepless by connecting with the auto tee-up machine.
- Information such as the remaining balls, remaining time, and tee height can be checked through the LED display.
- If the equipment malfunctions, the LED display displays an error code for rapid recovery.

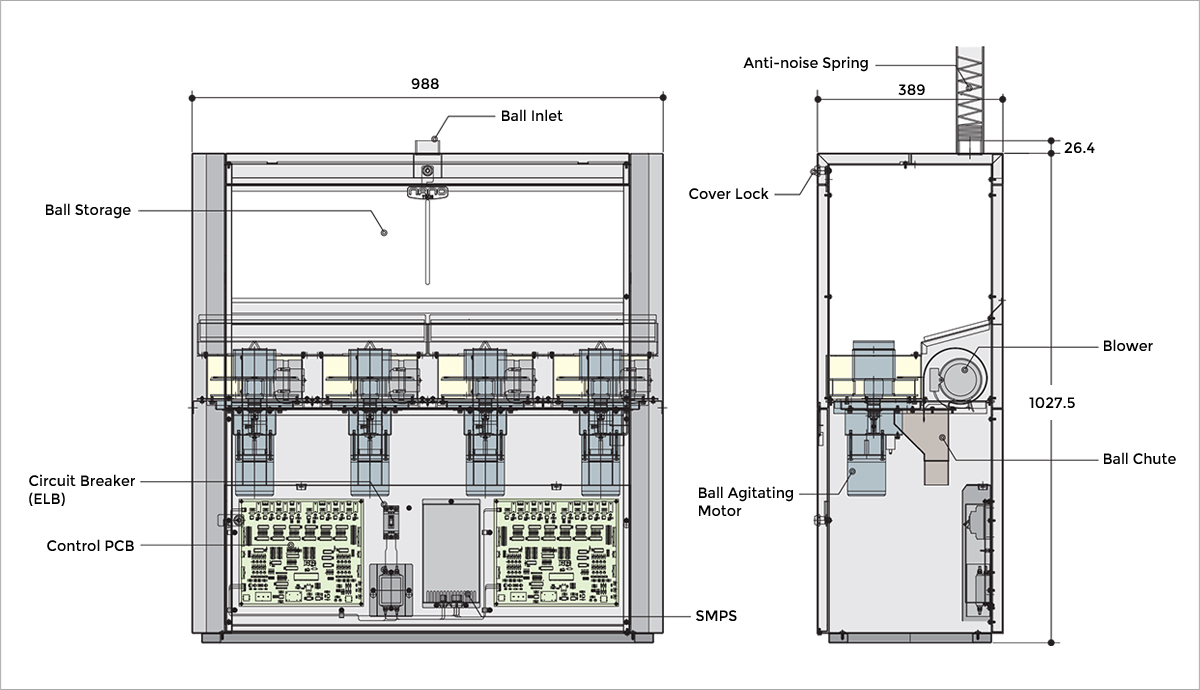

It is a machine that delivers a ball to the tee-up machine using the air generated from a fan. When a ball is hit from the tee-up machine, the ball sensor is activated to operate the agitation motor in the ball dispenser. It is possible to store approximately 500 / 1,000 / 1,600 / 8,000 balls.
- With the installation of an individual air blowing device for each bay, only one malfunctioning bay is stopped in case of a mechanical failure.
- Noise reduction for a falling ball by buffer spring. (Holds patent)

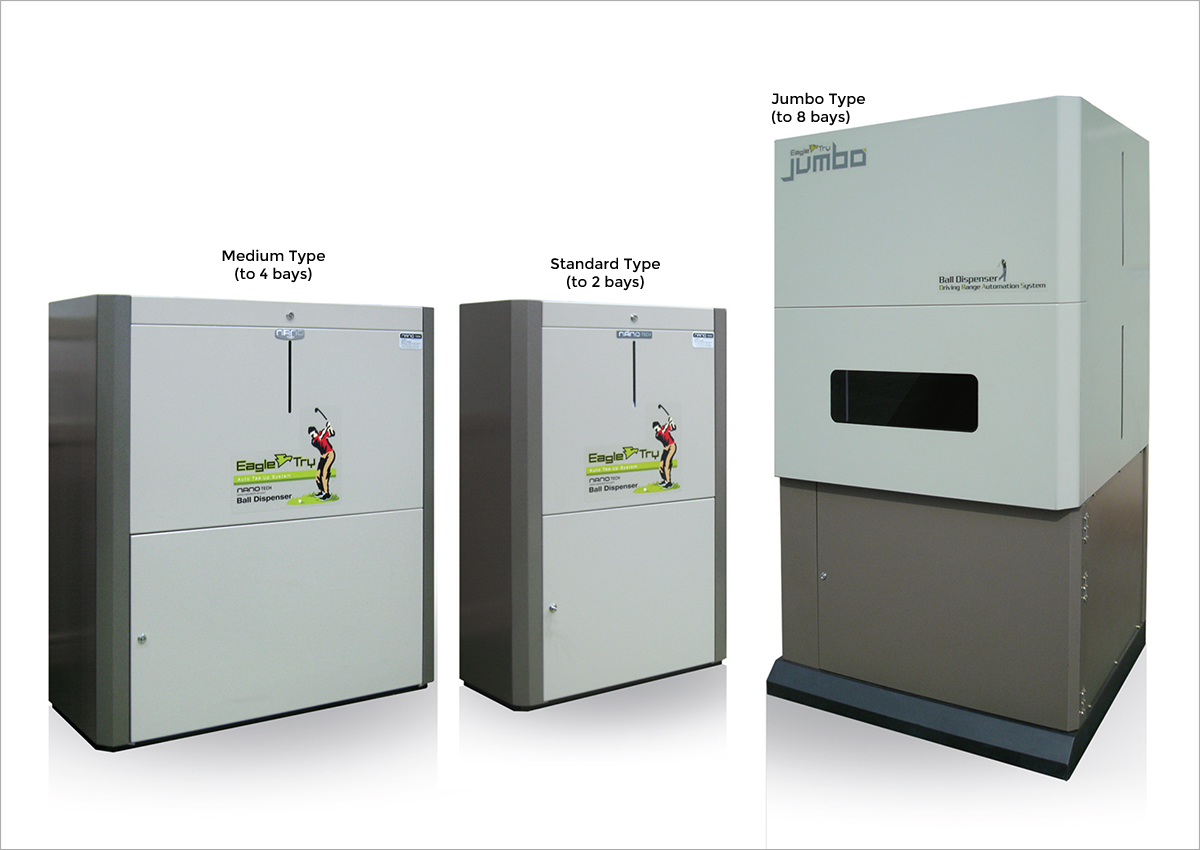

- NBD-1W : Supply to 1 bay (Mini Type)
- NBD-2W : Supply to 2 bays (Standard Type)
- NBD-4W : Supply to 4 bays (Medium Type)
- NBD-8W : Supply to 8 bays (Jumbo Type)
- NBD-G1W : Supply to 1 bay (Rollover Type)

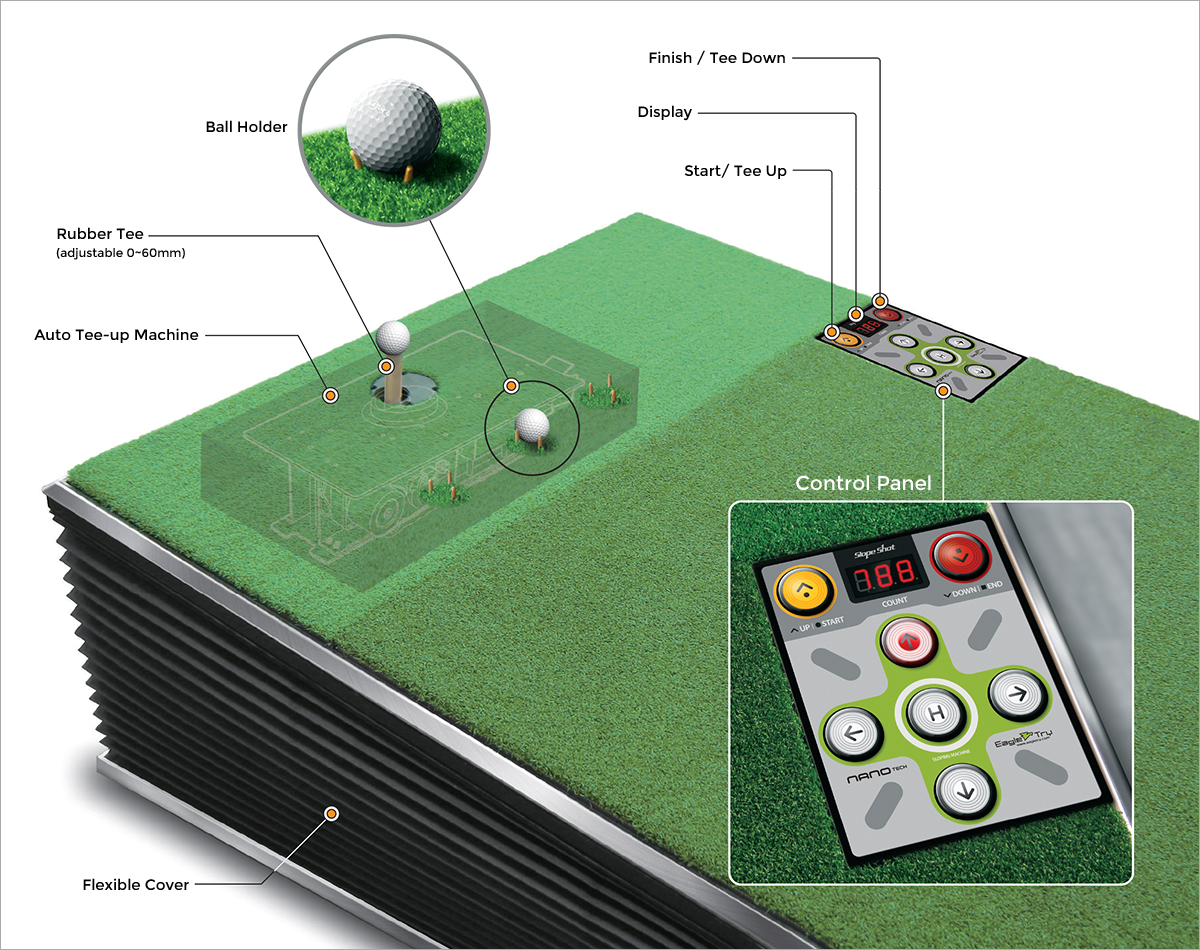

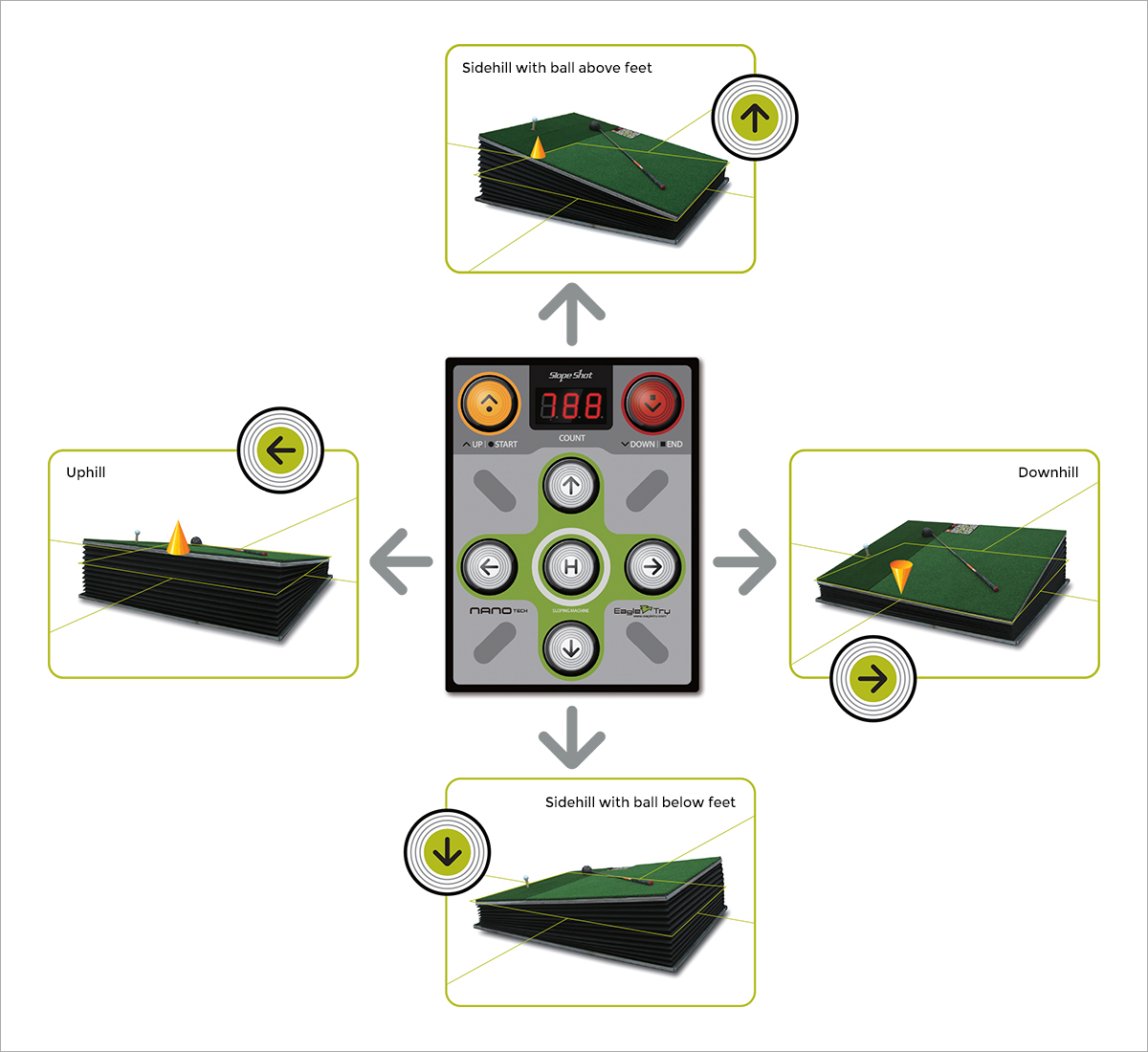

- Equipped with an automatic tee-up machine, it can be installed both in indoor and outdoor driving ranges.
- With ample space on the platform, it allows for a safer and more comfortable swing motion.
- Owner can generate more sales revenue by charging higher price than regular bays.
- Ball storage capacity : Approximately 8,000 balls
- Dimensions : (H)1,500×(W)1,000×(D)700mm

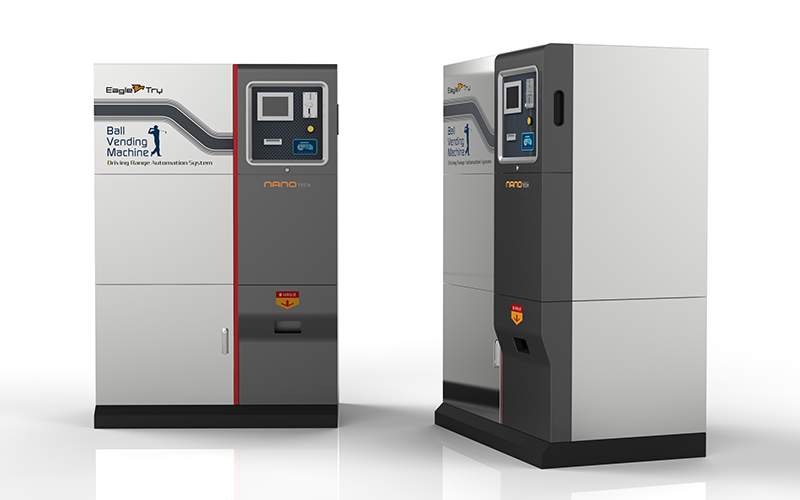

- Token : Standard Token / Special Token(Custom-made)
[Option] Card method(Installation of card R/W)
- Touch Panel Terminal (PC)
- Card Reader (125KHz EM / 13.56MHz Mifare)
- Coin Recognizer (Multiple types of coins available, almost type of coin can be recognized.)
- Operation Button

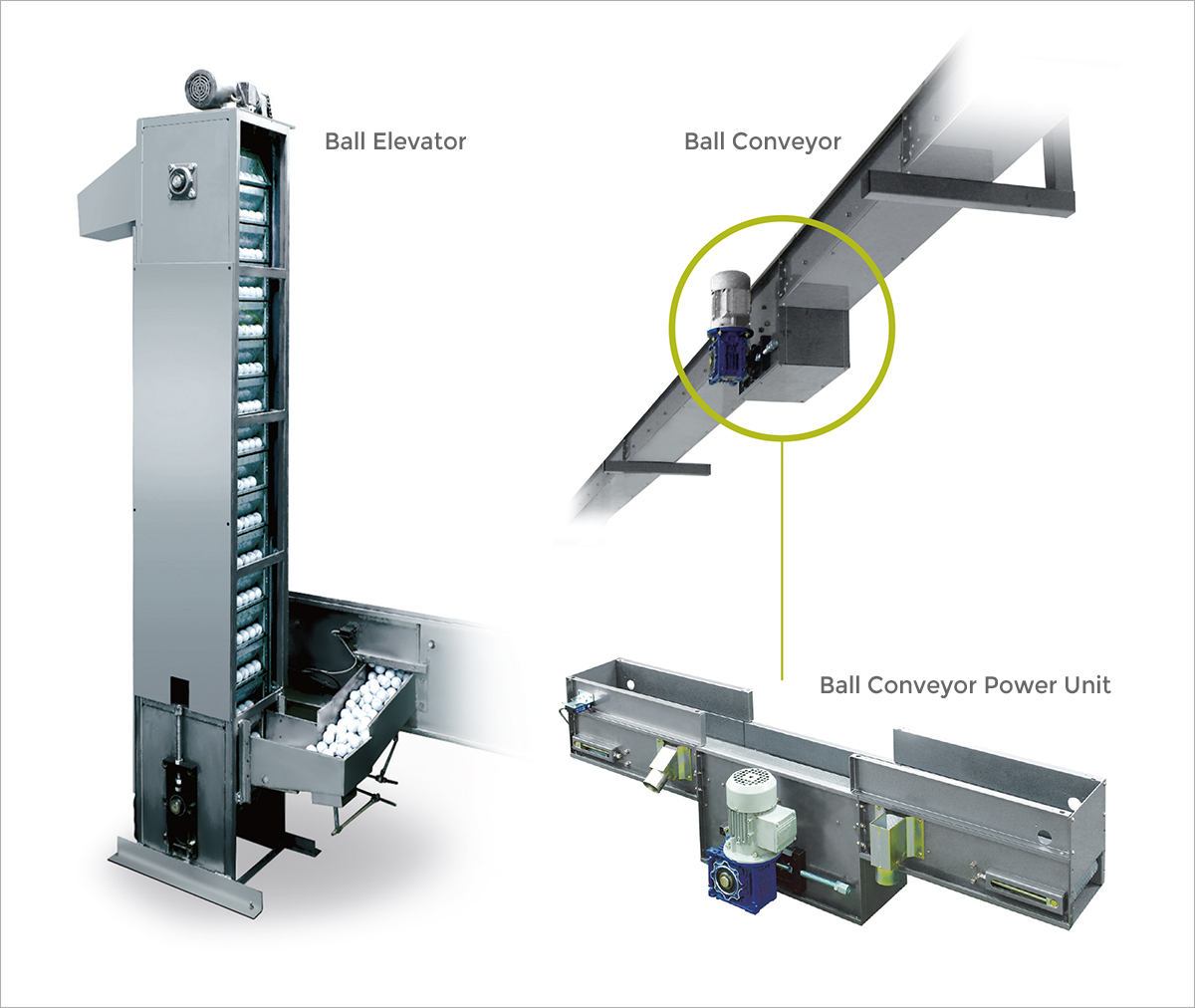

- Amount of transfer : 18,000 balls(5 balls bucket type) / 28,000 balls(8 balls bucket type) per hour
- Bucket material : Poly Carbonate(PC)
- Torque limits control for motor protection
- Since the left and right ends of the bucket are fixed to the chain, there is no fear of the bucket rotating or turning while operation.
- Amount of transfer : more than 30,000 balls per hour
- Use low noise canvas coated belt (thickness : 2.8mm)
- Easy adjustment of tension

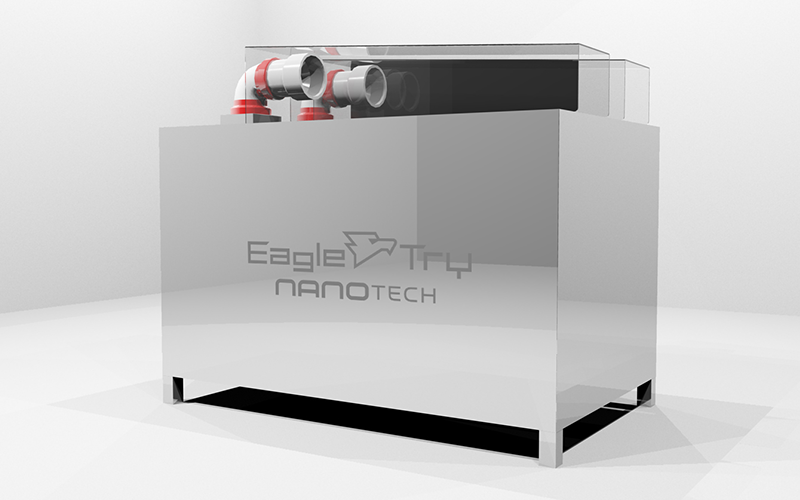

- High-pressure water-jet ball washing machine specialized for Driving range with natural grass fairway.
- Cleans mud or grass off a ball using two high-pressure pumps.
- Can completely relieve the deterioration of the durability caused by the injection of muddy or grassy balls into the brush ball washer.

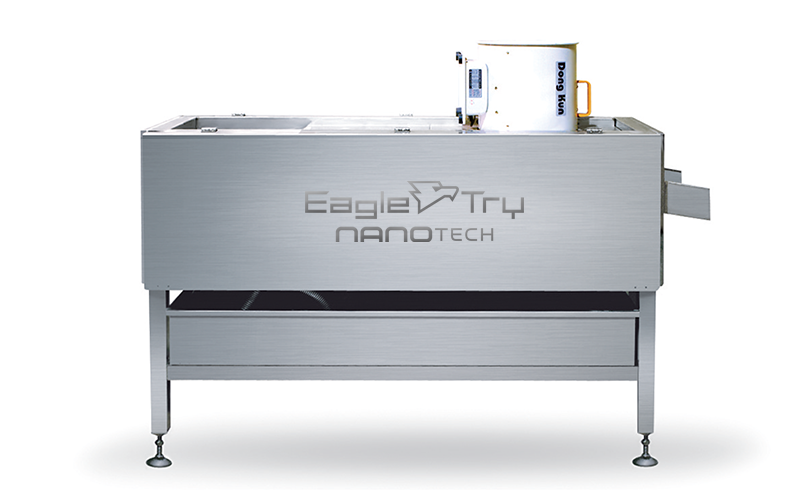

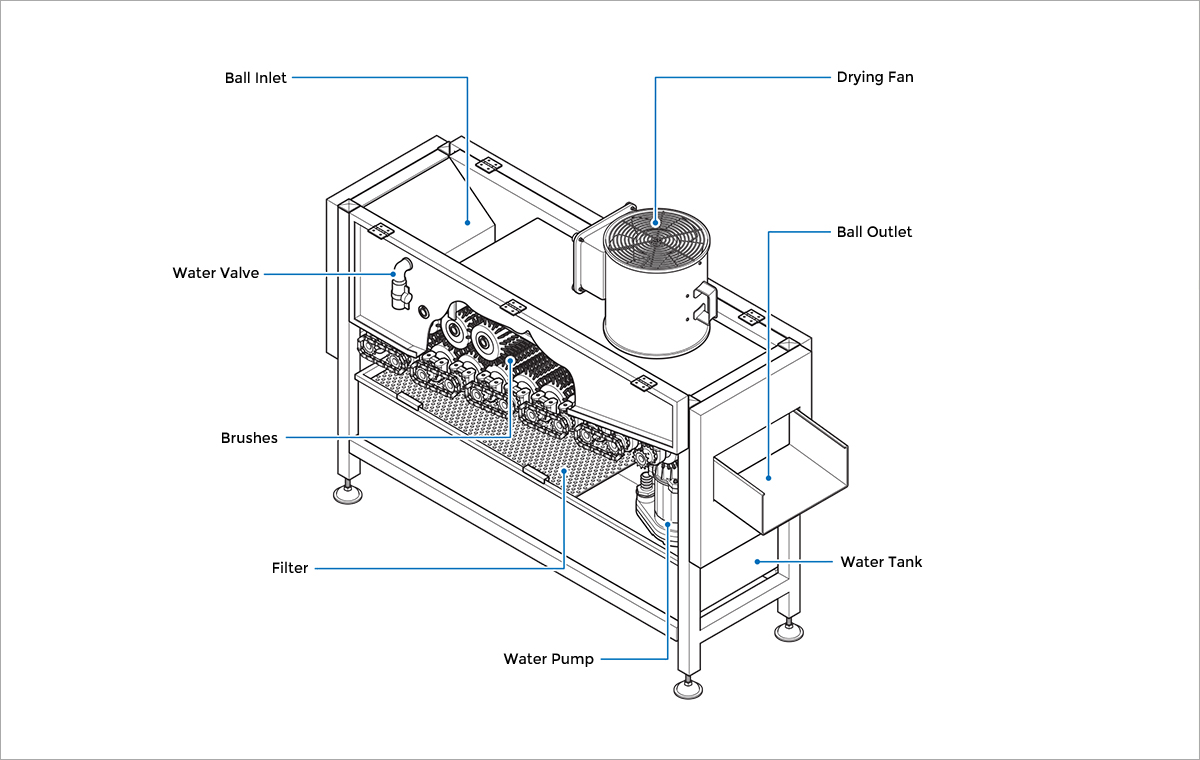

- All-in-one ball washer and dryer
- Wash brush : 10 brushes
- Amount of wash : more than 30,000 balls per hour
- Material : Stainless Steel
- Use an upgraded brush, expel the completely dried ball
